Anemometers measure wind speed, air pressure, and air velocity and are sometimes called wind speed meters. These instruments were first invented hundreds of years ago to measure wind, but today they are highly accurate monitors that provide an array of data.
Both digital and manual versions are available. An anemometer can measure both speed and velocity of the gas in a contained flow. It also measures the velocity and the speed in unconfined flows such as atmospheric wind.
Now, like anemometers, there are environmental meter 5 in 1 for the collection of the range of environmental data and are suitable for indoor and outdoor use.
Here is all you need to know about Anemometers.
Know About Invention
Leon Battista Alberti constructed the first model of the weather wheel in 1450, created to illustrate the velocity of the wind. The device features a wind-driven disk that rotates perpendicular to the wind. The disk rotates from the force of the wind and inclines as the wind moves.
Physicist and astronomer John Thomas Romney Robinson then reinvented the initial design from the 15th century in 1846. It featured a vertical spindle with four arms and was the prototype for the modern version. A cup was attached to each arm, and when the wind blew, the cups captured it, causing the spindle to rotate accordingly. Today, you can easily buy anemometer from online stores that provide high-quality scientific instruments.
How Reliable Is An Anemometer?
An anemometer must be accurate to be useful. High-quality devices will provide wind speed measurements with an accuracy of approximately ±0.5 m/s.
It is important to remember that environmental wind speeds are not constant, and they change constantly. When you are monitoring a wind tunnel, the speed will be constant, and you can count the precise measurements.
Why Do Anemometers Exist, And Why Are They Important?
This device is necessary for a scenario that requires information about the wind speed and direction. The use of this tool has many benefits, such as monitoring the safety of tall structures, positioning ships, controlling wind turbines, or studying the effects of wind in a scientific manner.
That is why they are used on almost all weather stations – from those in the Arctic to those located in the tropical equatorial regions. It is important for pilots, engineers, and climatologists to know wind speed because it provides an indication of the change in weather patterns, such as an approaching storm.
They are therefore highly valuable to meteorologists, who study weather patterns, as well as physicists, who study the way air moves. A large wind turbine even comes with an anemometer that measures wind speed and can activate brakes to stop the turbines from rotating if wind speeds are too high.
Other Uses Of An Anemometer
- Windsurfers and sailors who want to measure wind speed or direction can use this tool very easily.
- Paragliders and remote-controlled planes can check the weather conditions before taking off
- Environmental scientists monitor the environment

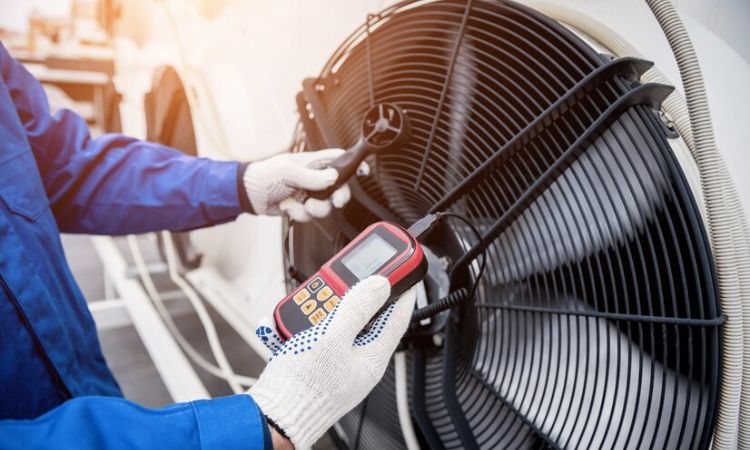

- During an installation or repair of an HVAC system, airflow measurement is a scientific way to determine exactly how much airflow exists in the HVAC system.
- Monitoring cranes during construction work is necessary since severe weather conditions can pose a risk to construction workers and equipment
- Outdoor events require consideration of the weather, especially if there are temporary structures, so the event organizers ensure safety by monitoring the weather
- In the absence of live weather data, these devices are useful for monitoring airfields and airports to reduce the risk posed by planes taking off and landing at low altitudes.
Different Kinds Of Anemometers
Hot-Wire Anemometer: The hot wire is also known as a thermal anemometer. This device works by electrically heating a fine wire to a certain temperature and then measuring the amount of heat that is transported away by air flowing.
As a result, the instrument is able to determine how fast the wind is traveling by measuring how quickly the wire cools and how cold the temperature becomes. This type of instrument is for handheld use and is very convenient.
Vane Anemometer: Users also call these anemometers types as propeller anemometers or windmill anemometers. Instead of cups, they have spinning blades that measure wind speed. The blades are mounted horizontally instead of vertically to face the wind.
Similar to cup models, they count the number of rotations per second to measure wind speed and display the results digitally. Mountable versions are common, but handheld models are also available.
Cup Anemometers: This is the simplest type and one of the most accurate tools. A pole mounted on the ground has a set of cups that spin on it when the wind blows. With increasing levels of wind, the cups spin faster, and the instrument measures the speed of the wind. The digital display showcases the measurements. Some handheld models are available, but most of them are designed to be mounted on structures like buildings or sailboats.
Sonic Anemometers: German geologist Andreas Pflitschin invented the device in 1994. They measure instantaneous wind speed and air velocity by measuring the sound waves traveling between two transducers.
Ultrasonic anemometers do not have moving parts, and they use sensors to detect even minute changes in the wind. You will see the typical arrangement of four sensors in a square shape.
Anemometer Calibration
You should calibrate anemometers regularly to ensure that they are accurate and as well as for adjusting it to ensure that it is aligning with the standard. As a result of the process, the equipment produces more accurate results than would otherwise be possible.
Maintaining the accuracy of your devices requires regular calibration. If you will not calibrate the tool regularly, then it will degrade over time. The maximum tolerance for calibration error is 5%, with any error beyond that potentially affecting the performance of the tool. This tolerance could lead to product liability.
Final Thoughts
There you have it, everything you need to know about anemometers. In this blog, we have explained to you what an anemometer is, how it works etc. We have also explained the different types of anemometers, and many other things like anemometer calibration, etc. We hope you find this a useful resource for learning about anemometers.
